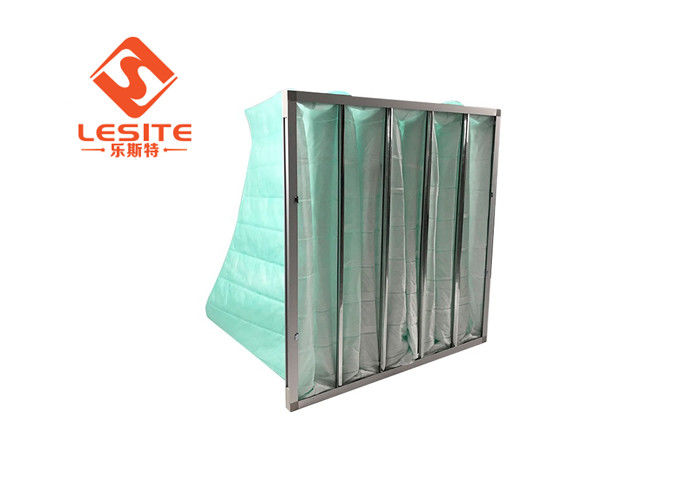

Small Resistance Glass Fiber 21mm H14 Aluminum Bag Filter , Pocket Air Filter
Product Details:
| Place of Origin: | China |
| Brand Name: | LESITE |
| Certification: | CE |
| Model Number: | Aluminum Bag Filter |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | export packing |
| Delivery Time: | 5-8 DAYS AFTER DEPOSIT |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000 m² per month |
|
Detail Information |
|||
| Efficiency: | 99.97%, H13~H14 | Max Humidity: | 100% |
|---|---|---|---|
| Size: | Customized | Material: | Fiber-glass |
| Max.humidity: | 100% | Optional Thickness: | Aluminum / GI: 21, 25, 46; Plastic: 25 |
| Frame: | Alluminum Alloy | Usage: | Air Condition Pre Filter |
| High Light: | 21mm Aluminum Bag Filter,H14 Aluminum Bag Filter,H14 pocket air filter |
||
Product Description
Small Resistance Aluminum Bag Filter Temperature Resistance Up To 80℃
About pocket filter
The pocket filter has the advantages of large dust holding capacity and low wind speed. as a result of this, it is considered to be the best medium filter structure.The medium efficiency of the glass fiber filter use the melt-blown superfine glass fiber filter material, its fiber fine (diameter 0.5-5 um), quantity and structure fleeciness, and it has higher efficiency, lower resistance, larger dust capacity than the similar synthetic fiber bag filter.
|
item
|
value
|
|
Medial material
|
Glass fiber/ synthetic fiber
|
|
Frame material
|
Aluminum /Galvanized steel
|
|
Filter pocket number
|
3-12
|
|
Efficiency
|
G4, M5, M6, F7, F8, F9
|
|
Max Operating Temperature
|
70˚C
|
|
Frame thickness
|
21mm/25mm
|
Efficiency: G3 / G4
Media: Synthetic fiber / Polyester fiber
Pocket type: Ultrasonic bag/Sewing bag
Frame: Extruded aluminum / GI / Plastic
Optional thickness: Aluminum / GI: 21, 25, 46; Plastic: 25
Max Temperature: 50℃
Max Humidity: 100%
Description
Pocket filter is mainly used to filtrate the dust particles with the diameter of 0.5um and above. It has the advantages of more filtering area, high dust holding capacity, low resistance, and can be washed and used repeatedly, etc.
Advantages
7 pleats/feet, 40% higher than normal product With holding frame, very strong structure Customer can replace the material very easy by themselves, the holder and frame can be recycled Washable, Can be reused when necessary
| Frame | Aluminum alloy |
| Filter medium | Synthetic fiber |
| Max. temperature | 80°C |
| Max. humidity | 80%RH |
