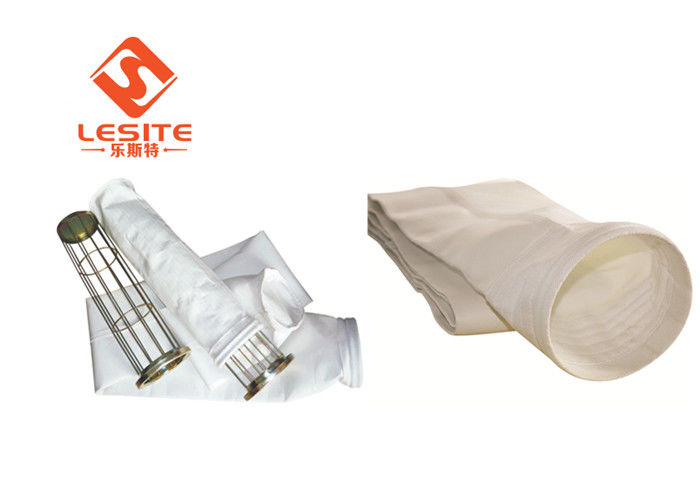

Good Air Permeability 2mm Dust Bag Filter , Baghouse Filter Bags White
Product Details
| Efficiency: | 55%-95% | Application: | Air Purifying |
|---|---|---|---|
| Size: | Customized | Material: | Fiber-glass |
| Condition: | New | Suitable For: | Dust Collect System |
| Type: | Filter Bag | Material Of Bag: | PTFE |
| Highlight |
Good Air Permeability Dust Bag Filter,2mm Dust Bag Filter,Good Air Permeability baghouse filter bags |
||
Product Description
Good Air Permeability Dust Filter Bag For Industry Dust Collector Filter
The bag mouth is made of elastic ring and saddle cushion (non-rubber ring) made of the same material, so as to avoid the aging of rubber ring
at high temperature and causes the filter bag to fall off.
dust leakage from the tube sheet hole.
400 micron acrylic dust collector filter bag are highly applied in these areas:
Chemicals Industry: plastics industry,dry,paints,packing,tonner,etc
Minerals industry:cement industry,coal mill,dryer system
Metals industry: iron and steel industry,coal-fired power,etc
Power generation and incineration: ferroalloy,Coal-fires power boilers,incinerator etc
Feature
|
Fiber
|
acrylic filter
|
||
|
Weight(g/m2)
|
550g/m2
|
||
|
Thickness(mm)
|
2.0-2.2mm
|
||
|
Mechanical Finish
|
Heat-setting ,Singed one side ,coating
|
||
|
Chemical Finish
|
PTFE impregnating
|
||
|
Air Permeability (m2/m3/min)
|
2.0-3.0
|
||
|
Break Strength(N/5cm)
|
Warp
|
≥900
|
|
|
Weft
|
≥1200
|
||
|
Break Elongation(%)
|
Warp
|
≤35
|
|
|
Weft
|
≤50
|
||
|
Working temperature (Degree C)
|
140-150℃
|
||
|
Resistance to acid
|
Good
|
Resistance to oxidation
|
Good
|
|
Resistance to alkali
|
Good
|
Resistance to Hydrolysis
|
Good
|
Nomex filter bag:
1. Temperature (°C): Continue: 204, Instant: 240
2. Application : pitch mix gas,blast furnace gas in steel factory, gas, tail gas of white char,kiln applications,electric cooker high temperature gas,etc.
PPS Ryton filter bag:
1. Temperature (°C): Continue: 190, Instant: 210
2. Application:waste incinerator,electric station boiler,industry boiler and so on.
P84 / PI filter bag ( Polyimide ),
1. Temperature (°C): Continue: 260, Instant: 300
2. Application:cement kiln,waste incinerator,etc
