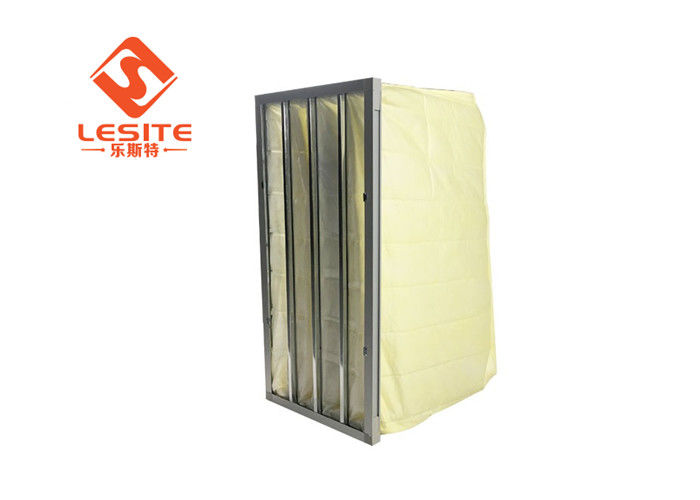

Cleanroom Use F5 F6 F7 Fiberglass Hepa Filter High Filtration Efficiency

Product Description

Fiberglass Paper Hepa Bag Filter Filtration Efficiency F5 / F6 / F7 /F8 (EN779)​



HEPA Efficiency Filter is a type of pleated mechanical air filter. It is an acronym for "high efficiency particulate air [filter]" (as officially defined by the U.S. Dept. of Energy). This type of air filter can theoretically remove at least 45% of dust, pollen, mold, bacteria, and any airborne particles with a size of 0.5 microns (µm). The diameter specification of 0.3 microns responds to the worst case; the most penetrating particle size (MPPS). Particles that are larger or smaller are trapped with even higher efficiency. Using the worst case particle size results in the worst case efficiency rating (i.e. 45%~95% or better for all particle sizes).
All air cleaners require periodic cleaning and filter replacement to function properly. Follow manufacturer's recommendations on maintenance and replacement.

Features:

Efficiency: ASHRAE 45%, 65%, 85%, 95%
Std.: EN779, F5 / F6 / F7 / F8
Bag filters are available in any size as per customer requirements, depending upon the air volume required to be handled

Application:

Commonly used as final filters in commercial applications or as prefilters for HEPA filters in hospitals in the Pharmaceutical Industry.

(1) installation of high efficiency filter:

As a result of the brittleness of glass fiber paper, so in the use and installation should first consider not to contact sharp objects and repeated rubbing, secondly, glass fiber paper should be used in contact with water or other corrosive liquid as far as possible, so as not to affect its normal use. Clean plant must have good cleaning equipment. Thirdly, the reasonable use of coarse, medium and high efficiency filter ensures that each filter does not bear heavy dust load. Visual inspection shall be carried out before installation to check whether the appearance of filter paper and filter is damaged, and the sealing condition shall be tested after installation to strictly detect leakage.

(2) common sense of high efficiency filter

For different particle sizes, the efficiency of the hepa filter can be up to 99.999999 (overseas). Some people equate the efficiency of a filter with the cleanliness of a clean room, and it seems like a hundred or even a ten can be achieved with as many as nine ultra-high performance filters. This is actually a misconception. Hepa filters are the heart of the system, but they are not the only guarantee of cleanliness. The efficiency of the hepa filter is only one of the necessary conditions, and it is also an easy condition to achieve. There are many other requirements to achieve a clean room grade, such as wind speed, air change times, door and window seals, and control of people entering and leaving the clean room. Only when all these aspects are up to standard can we guarantee the cleanliness of clean room.
