Product Details:

Place of Origin: Dongguan China
Brand Name: LESITE
Certification: CE / ISO9001
Model Number: PA-50 / PA-75 / PA-100

Payment & Shipping Terms:

Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Consulting customer service
Delivery Time: Consulting customer service
Payment Terms: T/T, L/C
Supply Ability: Consulting customer service
Get Best Price Contact Now

Detail Information

Features: Low Resistance Application: Paint Mist Emissions Of Painting System
Fiher Particles: ≥ 5um Humidity: ≤100%RH
Shape: Can Be Customized In Pad/pad With Frame/rolL Dust Holding Capacity: 600g/m"
High Light:

Low resistance Medium Filter Media

,

Spray Booth Medium Filter Media

,

Ceiling Medium Filter Media

Product Description

Low Resistance Medium Filter Media / Ceiling Filter For Spray Booth Good Smog Filtration Performance​



Low Resistance Medium Filter Media / Ceiling Filter For Spray Booth Good Smog Filtration Performance 0


Application


Mainly used for paint mist emissions of painting system or industrial oil mist emissions, and it can be also used for pre filter of general ventilation.

1. Exhaust gas filtering and paint mist collection in spray booth exhaust system.

2. Exhaust gas filtering and paint mist collection in painting equipment, painting system, and painting workshop,

3. Industrial oil mist emissions and paint mist collection.

4. Filter media for paint stop air filter and primary air filter.

5. Pre-filtering for paint mist and oil mist type exhaust gas purification device.

6. Can be customized in pad/pad with frame/roll.



Material & Features

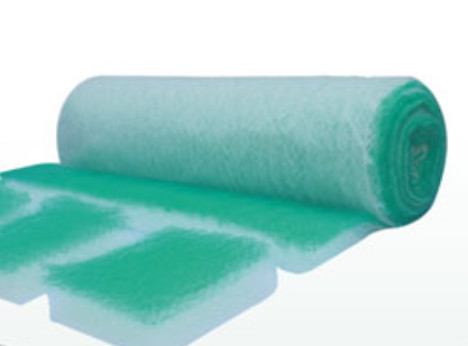

1. Using fluffy fiber glass material with Progressive structure, air inlet side is green, which is fluffy. The density of fiber increase gradually from inlet side (green) to outlet side (white). With this special structure, it can prevent surface material from being blocked too soon, meanwhile providing best effect of filtering and holding the paint.

2. Good elasticity fiber glass, no transformation even under the condition of pressure, therefore althe space can be made good use for olletsing paint mist.

3. With better resistance to corrosion, all kind of solvent, acid-base and high temperature.



Low Resistance Medium Filter Media / Ceiling Filter For Spray Booth Good Smog Filtration Performance 1



The application of air filter media(cotton) is very wide, Air filter media or mesh, is normally made of Polyester fiber or (abbr. as PET), PET is made by polyethylene glycol terephthalate, or synthetic fibre/ polyester fibre , with excellent wrinkle resistance, flexibility and dimensional stability. The material offers excellent insulativity , light resistance, wear resistance and humanity resistance, chemical-wise, with perfect chemical reaction resistance, weak acid and weak alkali resistance.



Many Industrial products must be produced in a clean room atmosphere. such as surface treatment, spraying, electronic, optical electron, pharmacy, food, air cooling industries. All those fabrication process will need airflow however no dust is allowed, therefore air filters must be deployed to filter all the dust to keep dustless airflow to meet manufacture air quality standard. The filter ffiency is decided by the porosity of the filter material, technically, if the porosity is sufficiently small more dust/particles will be arrested within the filter material.



The primary filter media is intended for new air fitration, to filter particles < 5 m with big dust holding capacity but limited windage, cost effective and inexpensive, The medium filter media is applied in spraying industries with ability to filter particles in between 1~ 10u m, the filte products designed for spraying heads to improve the spray paint room air quality.



High temperature resistant and flame retardant fiber glass are made of heat resistant/fire retardant material and mostly used in high temperature working condition.



According to Chinese filter grade (GB/T14295) also EU standards, from primary/medium/Hepa filter are ranked fromG1, G2 G3, G4, F5, F6, F7 and F8.

Low Resistance Medium Filter Media / Ceiling Filter For Spray Booth Good Smog Filtration Performance 2
