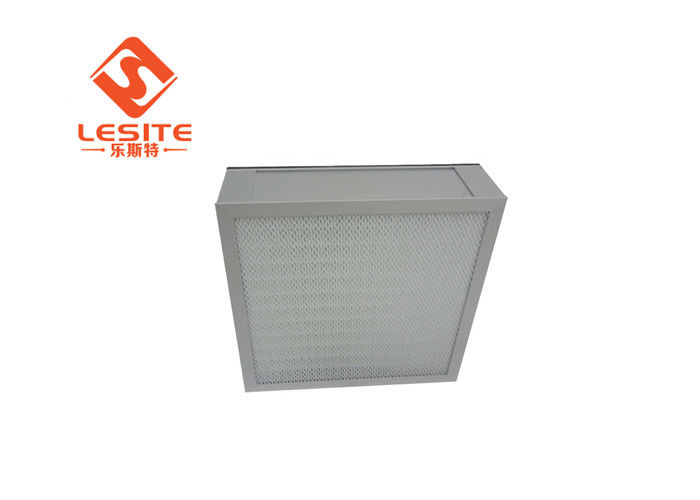

Synthetic Fiber 99.99% Hepa Filter Panel For Air Conditioning
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LESITE |
| Certification: | CE |
| Model Number: | standard |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Consulting customer service |
| Packaging Details: | Consulting customer service |
| Delivery Time: | Consulting customer service |
| Payment Terms: | T/T |
| Supply Ability: | Consulting customer service |
|
Detail Information |
|||
| Name: | Air Filter Paper | Brand: | LESITE |
|---|---|---|---|
| Condition: | New | Dimension(L*W*H): | Standard Size, Customized |
| Weight: | It Depends | Usage: | Air Condition Pre Filter |
| Frame: | Cardboard, Aluminium Alloy | Construction: | Panel Filter |
| Shape: | Square | Efficiency: | 99.99% |
| Filtration Grade: | Hepa Filter | Place Of Origin: | Guangdong, China |
| High Light: | Synthetic Fiber hepa filter panel,99.99% hepa filter panel,99.99% hepa filter for window ac |
||
Product Description
Factory Directfilter For Air Conditioning Sale Customized Hepa Filter Air Filter Paper
Quickly detail
Media: Non-woven Media
Frame: Aluminum / Plastic
Filter efficiency: F5,F6.F7,F8,F9
Filter size: 592x592x46
Resistance:<30-50pa
Two side metal screen
Performance:
Big air volume, low resistance, high dust hold capacity. Long time use .
Air filter uesd in:
1.Air condition system
2.Ventilate system
3.Exhaust gas filter in paint exhaust system on the floor of dry spray booth
4.Avoid tar coom and dust from high-temperature dryer
5.Clean room, cleaning equipments
6.FFU
7.Pharmaceutical factory,hospital, electronic factory food factory
8.Car production line development
9.Ultra-clean high-temperature oven
10.Car spray paint baking temperature applications.
11.Chemical, food factory etc industris
Characteristics:
1: There is three kinds of media for choose: Synthetic Fiber
2: The metal screen for protect z-line pleats from damage and frame distortion
3: Graded structural frame provide biggest media area, It is 5 times than plane air filter media area.
4: The frame not only can be metal but also can be Cardboard with moisture -proofing, this is disposable type without any pollution. Comply with environmental protection requirement.
5: Filtration efficiency (Test by weighing dust): 65%-95%
Efficiency range:F5,F6,F7,F8,F9 40%-95%@2um(EN779)
Dimension and parameter:
|
Dimension (W*H*D) (mm) |
Rate air flow (m3/h) |
Media area (m2) | dust containing capacity |
Initial Resistance (pa) |
Finally resistance (pa) |
Efficiency |
| 592x592x46 | 2600 | 0.97 | ≈110 |
<25-45pa
|
100-200pa |
G4
|
| ≈130 | ||||||
| ≈160 | ||||||
| ≈200 | ||||||
| 592x490x46 | 2200 | 0.81 | ≈98 | |||
| ≈110 | ||||||
| ≈130 | ||||||
| ≈160 | ||||||
| 5925x287x46 | 1300 | 0.48 | ≈50 | |||
| ≈60 | ||||||
| ≈80 | ||||||
| ≈100 | ||||||
| 490x592x46 | 2300 | 0.86 | ≈100 | |||
| ≈110 | ||||||
| ≈140 | ||||||
| ≈170 | ||||||
| 490x490x46 | 1900 | 0.71 | ≈80 | |||
| ≈95 | ||||||
| ≈115 | ||||||
| ≈145 | ||||||
| 287x592x46 | 1400 | 0.52 | ≈60 | |||
| ≈70 | ||||||
| ≈80 | ||||||
| ≈100 |
Customer size is available.
Material and operation conditions:
| Media | Synthetic fiber Media |
| Plastic frame | 21mm |
| Aluminum Frame | 17-50mm |
| Frame | Plastic /Galvanized/Aluminum/SUS frame |
| Ultrasonic wave bag | |
| Efficiency | 45-95% F5-F8 |
| Max temperature | 120°c |
| Max humidity | 100% |
