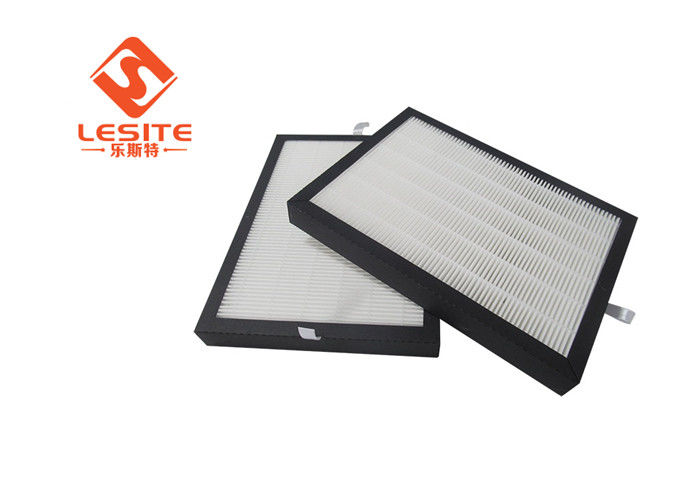

Temperature Resistance Air Conditioning Hepa Filters , F7 Panel Filter For Clean Room
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LESITE |
| Certification: | CE |
| Model Number: | standard |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Consulting customer service |
| Packaging Details: | Consulting customer service |
| Delivery Time: | Consulting customer service |
| Payment Terms: | T/T |
| Supply Ability: | Consulting customer service |
|
Detail Information |
|||
| Name: | Air Conditioning Hepa Filters | Brand: | LESITE |
|---|---|---|---|
| Condition: | New | Dimension(L*W*H): | Standard Size, Customized |
| Weight: | It Depends | Frame: | Cardboard, Aluminium Alloy |
| Core Components: | Motor | Construction: | Panel Filter |
| Funcition: | High Temperature Resistance | Application: | Pharmaceutical Factory , Electronic Factory Food Factory |
| Package: | Customsize | Machinery Test Report: | Provided |
| Place Of Origin: | Guangdong, China | After Warranty Service: | Video Technical Support, Online Support |
| High Light: | f7 Air Conditioning Hepa Filters,Temperature Resistance Air Conditioning Hepa Filters,Temperature Resistance f7 panel filter |
||
Product Description
Air Conditioning Hepa Filters For Clean Room, Cleaning Equipments
Quickly detail
Media: Non-woven Media
Frame: Aluminum / Plastic
Filter efficiency: F5,F6.F7,F8,F9
Filter size: 592x592x46
Resistance:<30-50pa
Two side metal screen
Performance:
Big air volume, low resistance, high dust hold capacity. Long time use .
Air filter uesd in:
1.Air condition system
2.Ventilate system
3.Exhaust gas filter in paint exhaust system on the floor of dry spray booth
4.Avoid tar coom and dust from high-temperature dryer
5.Clean room, cleaning equipments
6.FFU
7.Pharmaceutical factory,hospital, electronic factory food factory
8.Car production line development
9.Ultra-clean high-temperature oven
10.Car spray paint baking temperature applications.
11.Chemical, food factory etc industris
Characteristics:
1: There is three kinds of media for choose: Synthetic Fiber
2: The metal screen for protect z-line pleats from damage and frame distortion
3: Graded structural frame provide biggest media area, It is 5 times than plane air filter media area.
4: The frame not only can be metal but also can be Cardboard with moisture -proofing, this is disposable type without any pollution. Comply with environmental protection requirement.
5: Filtration efficiency (Test by weighing dust): 65%-95%
Efficiency range:F5,F6,F7,F8,F9 40%-95%@2um(EN779)
Dimension and parameter:
|
Dimension (W*H*D) (mm) |
Rate air flow (m3/h) |
Media area (m2) | dust containing capacity |
Initial Resistance (pa) |
Finally resistance (pa) |
Efficiency |
| 592x592x46 | 2600 | 0.97 | ≈110 |
<25-45pa
|
100-200pa |
G4
|
| ≈130 | ||||||
| ≈160 | ||||||
| ≈200 | ||||||
| 592x490x46 | 2200 | 0.81 | ≈98 | |||
| ≈110 | ||||||
| ≈130 | ||||||
| ≈160 | ||||||
| 5925x287x46 | 1300 | 0.48 | ≈50 | |||
| ≈60 | ||||||
| ≈80 | ||||||
| ≈100 | ||||||
| 490x592x46 | 2300 | 0.86 | ≈100 | |||
| ≈110 | ||||||
| ≈140 | ||||||
| ≈170 | ||||||
| 490x490x46 | 1900 | 0.71 | ≈80 | |||
| ≈95 | ||||||
| ≈115 | ||||||
| ≈145 | ||||||
| 287x592x46 | 1400 | 0.52 | ≈60 | |||
| ≈70 | ||||||
| ≈80 | ||||||
| ≈100 |
Customer size is available.
Material and operation conditions:
| Media | Synthetic fiber Media |
| Plastic frame | 21mm |
| Aluminum Frame | 17-50mm |
| Frame | Plastic /Galvanized/Aluminum/SUS frame |
| Ultrasonic wave bag | |
| Efficiency | 45-95% F5-F8 |
| Max temperature | 120°c |
| Max humidity | 100% |
Our service
1)We could provide OEM & OOM service.
2)We provide factory inspection service
2)We holds that customer first and quality first.
3)We provide fast delivery, including air express, sea transportation and land carriage
4)We use various payment methods: L/C, T/T, Paypal, western union.
Delivery
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 2-7 days for samples; 7-10 days for batch goods.
FAQ
Q1.CANI HAVE A SAMPLE ORDER?
A: Yes,we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. WHAT ABOUT THE LEAD TIME?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3.Do YoU HAVE ANY MoQ LIMIT?
A: Low MOQ,1pc for sample checking is available
Q4.How To PROCEED AN ORDER?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Finally we arrange the production.
Q5.lS IT oK TO PRINT MYLoGo oN PRoDuCT?
A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
