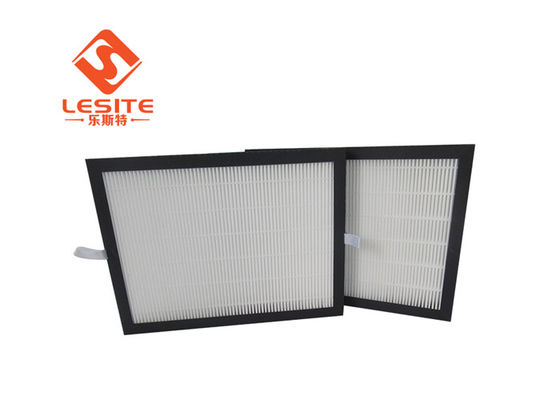

490mm F8 Flat Cell Panel Filter , Hepa Filter In AC For Pharmaceutical Factory
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LESITE |
| Certification: | CE |
| Model Number: | standard |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Consulting customer service |
| Packaging Details: | Consulting customer service |
| Delivery Time: | Consulting customer service |
| Payment Terms: | T/T |
| Supply Ability: | Consulting customer service |
|
Detail Information |
|||
| Name: | Air Conditioning Hepa Filters | Brand: | LESITE |
|---|---|---|---|
| Condition: | New | Dimension(L*W*H): | Standard Size, Customized |
| Weight: | It Depends | Frame: | Cardboard, Aluminium Alloy |
| Core Components: | Motor | Construction: | Panel Filter |
| Funcition: | High Temperature Resistance | Application: | Pharmaceutical Factory , Electronic Factory Food Factory |
| Package: | Customsize | Machinery Test Report: | Provided |
| Place Of Origin: | Guangdong, China | After Warranty Service: | Video Technical Support, Online Support |
| High Light: | 490mm flat cell panel filter,F8 flat cell panel filter,flat F8 bag filter |
||
Product Description
Air Conditioning Hepa Filters For Pharmaceutical Factory , Electronic Factory Food Factory
Quickly detail
Media: Non-woven Media
Frame: Aluminum / Plastic
Filter efficiency: F5,F6.F7,F8,F9
Filter size: 592x592x46
Resistance:<30-50pa
Two side metal screen
Performance:
Big air volume, low resistance, high dust hold capacity. Long time use .
Air filter uesd in:
1.Air condition system
2.Ventilate system
3.Exhaust gas filter in paint exhaust system on the floor of dry spray booth
4.Avoid tar coom and dust from high-temperature dryer
5.Clean room, cleaning equipments
6.FFU
7.Pharmaceutical factory,hospital, electronic factory food factory
8.Car production line development
9.Ultra-clean high-temperature oven
10.Car spray paint baking temperature applications.
11.Chemical, food factory etc industris
Characteristics:
1: There is three kinds of media for choose: Synthetic Fiber
2: The metal screen for protect z-line pleats from damage and frame distortion
3: Graded structural frame provide biggest media area, It is 5 times than plane air filter media area.
4: The frame not only can be metal but also can be Cardboard with moisture -proofing, this is disposable type without any pollution. Comply with environmental protection requirement.
5: Filtration efficiency (Test by weighing dust): 65%-95%
Efficiency range:F5,F6,F7,F8,F9 40%-95%@2um(EN779)
Dimension and parameter:
|
Dimension (W*H*D) (mm) |
Rate air flow (m3/h) |
Media area (m2) | dust containing capacity |
Initial Resistance (pa) |
Finally resistance (pa) |
Efficiency |
| 592x592x46 | 2600 | 0.97 | ≈110 |
<25-45pa
|
100-200pa |
G4
|
| ≈130 | ||||||
| ≈160 | ||||||
| ≈200 | ||||||
| 592x490x46 | 2200 | 0.81 | ≈98 | |||
| ≈110 | ||||||
| ≈130 | ||||||
| ≈160 | ||||||
| 5925x287x46 | 1300 | 0.48 | ≈50 | |||
| ≈60 | ||||||
| ≈80 | ||||||
| ≈100 | ||||||
| 490x592x46 | 2300 | 0.86 | ≈100 | |||
| ≈110 | ||||||
| ≈140 | ||||||
| ≈170 | ||||||
| 490x490x46 | 1900 | 0.71 | ≈80 | |||
| ≈95 | ||||||
| ≈115 | ||||||
| ≈145 | ||||||
| 287x592x46 | 1400 | 0.52 | ≈60 | |||
| ≈70 | ||||||
| ≈80 | ||||||
| ≈100 |
Customer size is available.
Material and operation conditions:
| Media | Synthetic fiber Media |
| Plastic frame | 21mm |
| Aluminum Frame | 17-50mm |
| Frame | Plastic /Galvanized/Aluminum/SUS frame |
| Ultrasonic wave bag | |
| Efficiency | 45-95% F5-F8 |
| Max temperature | 120°c |
| Max humidity | 100% |
Our service
1)We could provide OEM & OOM service.
2)We provide factory inspection service
2)We holds that customer first and quality first.
3)We provide fast delivery, including air express, sea transportation and land carriage
4)We use various payment methods: L/C, T/T, Paypal, western union.
Delivery
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 2-7 days for samples; 7-10 days for batch goods.
