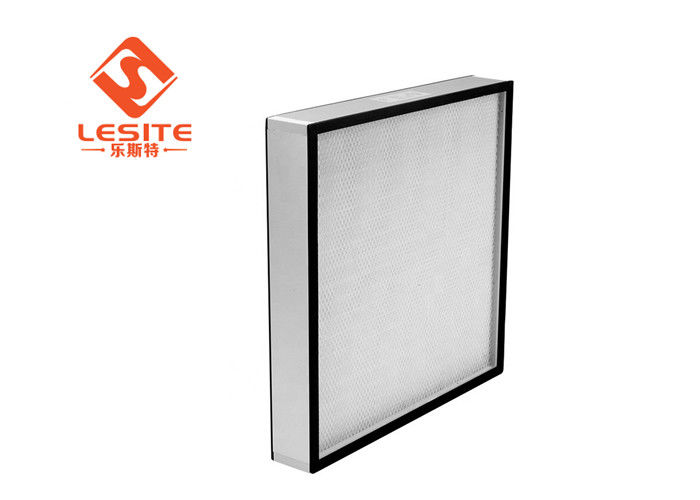

Temperature Resistance Microfiber Paper Central AC Hepa Filter For Asthma
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LESITE |
| Certification: | CE |
| Model Number: | standard |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Consulting customer service |
| Packaging Details: | Consulting customer service |
| Delivery Time: | Consulting customer service |
| Payment Terms: | T/T |
| Supply Ability: | Consulting customer service |
|
Detail Information |
|||
| Name: | Air Conditioning Hepa Filters | Brand: | LESITE |
|---|---|---|---|
| Condition: | New | Dimension(L*W*H): | Standard Size, Customized |
| Weight: | It Depends | Frame: | Cardboard, Aluminium Alloy |
| Core Components: | Motor | Construction: | Panel Filter |
| Funcition: | High Temperature Resistance | Application: | Pharmaceutical Factory , Electronic Factory Food Factory |
| Package: | Customsize | Machinery Test Report: | Provided |
| Place Of Origin: | Guangdong, China | After Warranty Service: | Video Technical Support, Online Support |
| High Light: | Temperature Resistance Central AC Hepa Filter,Microfiber paper central ac hepa filter,Microfiber paper hepa filter for asthma |
||
Product Description
Low Resistance Air Conditioning Hepa Filters Temperature Resistance Up To 80 ℃
Features:
◎ Media made from ultrafine fiberglass fiber;
◎ Each filter tested by laser scans one by one;
◎ Temperature resistance up to 80 ℃;
◎ Low resistance and high efficiency, easy to install, long life for using.
Material List
| Frame Material | Aluminum/Galvanized Steel/Wood |
| Filtering Material | Microfiber paper |
| Sealant | Polyurethane |
| Inner liner strip | EVA/EPDM |
| Separator | Offset paper/Aluminum foil |
| Maximum Humidity | ≤100%HR |
| Maximum temperature |
≤80℃
|
| Application | Electronic/precision machinery/pharmacy/food/semiconductor |
Application
HEPA filter: It widely used to the terminal filtration of the clean room.
ULPA filter: Work zone where require demanding clean class, like hospital operation room, laboratory, pharmaceutical room, electronics, optical fiber equipment and food processing factory etc.
Characteristics:
1: There is three kinds of media for choose: Synthetic Fiber
2: The metal screen for protect z-line pleats from damage and frame distortion
3: Graded structural frame provide biggest media area, It is 5 times than plane air filter media area.
4: The frame not only can be metal but also can be Cardboard with moisture -proofing, this is disposable type without any pollution. Comply with environmental protection requirement.
5: Filtration efficiency (Test by weighing dust): 65%-95%
Efficiency range:F5,F6,F7,F8,F9 40%-95%@2um(EN779)
Dimension and parameter:
|
Dimension (W*H*D) (mm) |
Rate air flow (m3/h) |
Media area (m2) | dust containing capacity |
Initial Resistance (pa) |
Finally resistance (pa) |
Efficiency |
| 592x592x46 | 2600 | 0.97 | ≈110 |
<25-45pa
|
100-200pa |
G4
|
| ≈130 | ||||||
| ≈160 | ||||||
| ≈200 | ||||||
| 592x490x46 | 2200 | 0.81 | ≈98 | |||
| ≈110 | ||||||
| ≈130 | ||||||
| ≈160 | ||||||
| 5925x287x46 | 1300 | 0.48 | ≈50 | |||
| ≈60 | ||||||
| ≈80 | ||||||
| ≈100 | ||||||
| 490x592x46 | 2300 | 0.86 | ≈100 | |||
| ≈110 | ||||||
| ≈140 | ||||||
| ≈170 | ||||||
| 490x490x46 | 1900 | 0.71 | ≈80 | |||
| ≈95 | ||||||
| ≈115 | ||||||
| ≈145 | ||||||
| 287x592x46 | 1400 | 0.52 | ≈60 | |||
| ≈70 | ||||||
| ≈80 | ||||||
| ≈100 |
Customer size is available.
Material and operation conditions:
| Media | Synthetic fiber Media |
| Plastic frame | 21mm |
| Aluminum Frame | 17-50mm |
| Frame | Plastic /Galvanized/Aluminum/SUS frame |
| Ultrasonic wave bag | |
| Efficiency | 45-95% F5-F8 |
| Max temperature | 120°c |
| Max humidity | 100% |
Our products are widely used in automobile manufacturing, industrial coating, microelectronics, gas electronic, hospitals, food industry, shopping complexes and other air purification places.
We insist on the principle of development of “Today’s quality is tomorrow’s market, top quality service, honest and trustworthy”.
In good faith, professional service to create a clean, fresh, healthy air environment.
