Aluminum Frame 200pa G4 Standaed Hepa Filter For AC System
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LESITE |
| Certification: | CE |
| Model Number: | Net attached type and bracket type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Consulting customer service |
| Packaging Details: | Consulting customer service |
| Delivery Time: | Consulting customer service |
| Payment Terms: | T/T |
| Supply Ability: | Consulting customer service |
|
Detail Information |
|||
| Name: | Air Conditioning Hepa Filters | Brand: | LESITE |
|---|---|---|---|
| Construction: | Panel Filter | Weight: | Light Weight |
| Size: | Customized Made | Condition: | New |
| High Light: | Aluminum Frame Hepa Filter For AC System,G4 Standaed hepa filter for ac system,G4 Standaed hepa window air conditioner |
||
Product Description

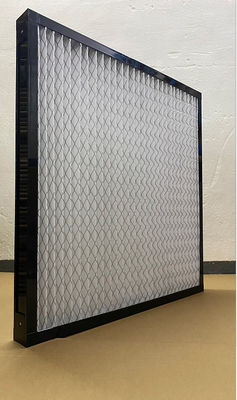

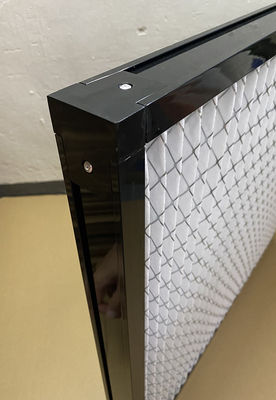

Air Conditioning Hepa Filters With High Quality Aluminum Frame
Efficiency: 99.99%, 99.995%@0.3μm
Standard: EN1822, ClassH13 / H14
Durable temperature: 80 ℃
Durable humidity: 100% RH (NO Dew)
Features: The partition-type filter is separated by a corrugated aluminum partition with a thickness of at least 0.0038mm. The corrugated aluminum partition maintains the space between each pleated filter paper, and the airflow is easy to pass through, ensuring limited use of the filter material and increasing strength. . The aluminum divider double frills prevent the filter paper from being inserted, providing maximum security.
Filter material: The filter material is made of ultra-fine and high-density glass fiber. The filter material is sealed with a polyurethane sealant to ensure airtightness around the filter material.
Outer frame: The frame material can be galvanized iron frame, aluminum frame or stainless steel frame. Choice of box type, single flange and double flange. Metal screens can be provided on both sides of the filter.
Dimension and parameter:
|
Dimension (W*H*D) (mm) |
Rate air flow (m3/h) |
Media area (m2) | dust containing capacity |
Initial Resistance (pa) |
Finally resistance (pa) |
Efficiency |
| 592x592x46 | 2600 | 0.97 | ≈110 |
<25-45pa
|
100-200pa |
G4
|
| ≈130 | ||||||
| ≈160 | ||||||
| ≈200 | ||||||
| 592x490x46 | 2200 | 0.81 | ≈98 | |||
| ≈110 | ||||||
| ≈130 | ||||||
| ≈160 | ||||||
| 5925x287x46 | 1300 | 0.48 | ≈50 | |||
| ≈60 | ||||||
| ≈80 | ||||||
| ≈100 | ||||||
| 490x592x46 | 2300 | 0.86 | ≈100 | |||
| ≈110 | ||||||
| ≈140 | ||||||
| ≈170 | ||||||
| 490x490x46 | 1900 | 0.71 | ≈80 | |||
| ≈95 | ||||||
| ≈115 | ||||||
| ≈145 | ||||||
| 287x592x46 | 1400 | 0.52 | ≈60 | |||
| ≈70 | ||||||
| ≈80 | ||||||
| ≈100 |
Customer size is available.
Material and operation conditions:
| Media | Synthetic fiber Media |
| Plastic frame | 21mm |
| Aluminum Frame | 17-50mm |
| Frame | Plastic /Galvanized/Aluminum/SUS frame |
| Ultrasonic wave bag | |
| Efficiency | 45-95% F5-F8 |
| Max temperature | 120°c |
| Max humidity | 100% |
