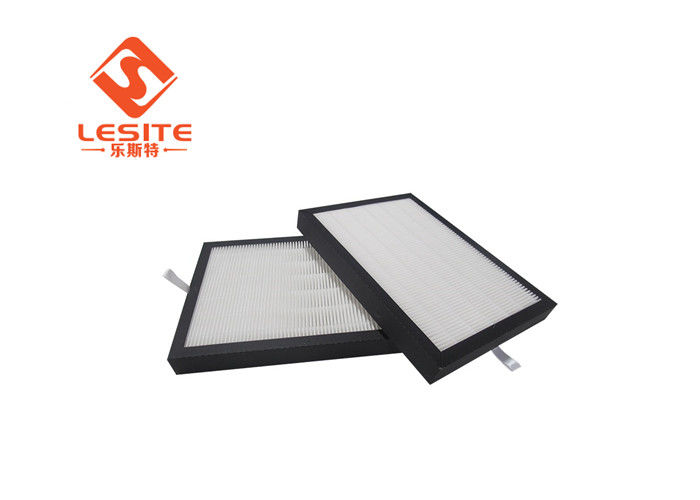

Long Life Span 592mm Air Conditioning Hepa Filters Light Weight
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LESITE |
| Certification: | CE |
| Model Number: | standard |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Consulting customer service |
| Packaging Details: | Consulting customer service |
| Delivery Time: | Consulting customer service |
| Payment Terms: | T/T |
| Supply Ability: | Consulting customer service |
|
Detail Information |
|||
| Name: | Air Conditioning Hepa Filters | Brand: | LESITE |
|---|---|---|---|
| Condition: | New | Dimension(L*W*H): | Standard Size, Customized |
| Weight: | It Depends | Frame: | Cardboard, Aluminium Alloy |
| Core Components: | Motor | Construction: | Panel Filter |
| Funcition: | High Temperature Resistance | Application: | Pharmaceutical Factory , Electronic Factory Food Factory |
| Package: | Customsize | Machinery Test Report: | Provided |
| Place Of Origin: | Guangdong, China | After Warranty Service: | Video Technical Support, Online Support |
| High Light: | Long Life Span Air Conditioning Hepa Filters,592mm Air Conditioning Hepa Filters,Long Life Span g4 panel filter |
||
Product Description
Long Life-Span And Good Sealing Air Conditioning Hepa Filters
Specifications:
1. It is applied the technology of totally-sealed. The sealing effect is better and more durable than normal one ,which is not easy to leak
2. The double sides of filter material are protected by metal wire mesh.
3. Theare are 50 mm, 69 mm, 90 mm and other various thickness available.
Product feature
Low resistance
Low run cost
Light weight, convenient installation and replacement
Long life-span
100% factory inspection
Good sealing
Super high efficiency
OEM
Customized size is available
Application
HEPA filter: It widely used to the terminal filtration of the clean room.
ULPA filter: Work zone where require demanding clean class, like hospital operation room, laboratory, pharmaceutical room, electronics, optical fiber equipment and food processing factory etc.
Characteristics:
1: There is three kinds of media for choose: Synthetic Fiber
2: The metal screen for protect z-line pleats from damage and frame distortion
3: Graded structural frame provide biggest media area, It is 5 times than plane air filter media area.
4: The frame not only can be metal but also can be Cardboard with moisture -proofing, this is disposable type without any pollution. Comply with environmental protection requirement.
5: Filtration efficiency (Test by weighing dust): 65%-95%
Efficiency range:F5,F6,F7,F8,F9 40%-95%@2um(EN779)
Dimension and parameter:
|
Dimension (W*H*D) (mm) |
Rate air flow (m3/h) |
Media area (m2) | dust containing capacity |
Initial Resistance (pa) |
Finally resistance (pa) |
Efficiency |
| 592x592x46 | 2600 | 0.97 | ≈110 |
<25-45pa
|
100-200pa |
G4
|
| ≈130 | ||||||
| ≈160 | ||||||
| ≈200 | ||||||
| 592x490x46 | 2200 | 0.81 | ≈98 | |||
| ≈110 | ||||||
| ≈130 | ||||||
| ≈160 | ||||||
| 5925x287x46 | 1300 | 0.48 | ≈50 | |||
| ≈60 | ||||||
| ≈80 | ||||||
| ≈100 | ||||||
| 490x592x46 | 2300 | 0.86 | ≈100 | |||
| ≈110 | ||||||
| ≈140 | ||||||
| ≈170 | ||||||
| 490x490x46 | 1900 | 0.71 | ≈80 | |||
| ≈95 | ||||||
| ≈115 | ||||||
| ≈145 | ||||||
| 287x592x46 | 1400 | 0.52 | ≈60 | |||
| ≈70 | ||||||
| ≈80 | ||||||
| ≈100 |
Customer size is available.
Material and operation conditions:
| Media | Synthetic fiber Media |
| Plastic frame | 21mm |
| Aluminum Frame | 17-50mm |
| Frame | Plastic /Galvanized/Aluminum/SUS frame |
| Ultrasonic wave bag | |
| Efficiency | 45-95% F5-F8 |
| Max temperature | 120°c |
| Max humidity | 100% |
Our service
1)We could provide OEM & OOM service.
2)We provide factory inspection service
2)We holds that customer first and quality first.
3)We provide fast delivery, including air express, sea transportation and land carriage
4)We use various payment methods: L/C, T/T, Paypal, western union.
