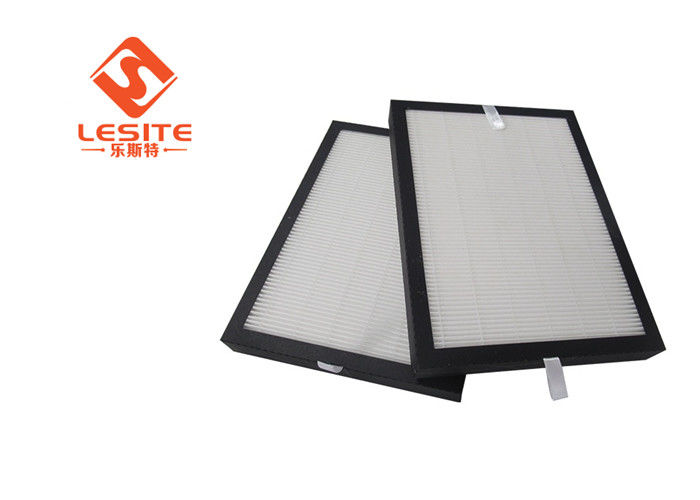

Low Resistance 0.97m2 Air Conditioning Hepa Filters Aluminium Alloy
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LESITE |
| Certification: | CE |
| Model Number: | standard |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Consulting customer service |
| Packaging Details: | Consulting customer service |
| Delivery Time: | Consulting customer service |
| Payment Terms: | T/T |
| Supply Ability: | Consulting customer service |
|
Detail Information |
|||
| Name: | Air Conditioning Hepa Filters | Brand: | LESITE |
|---|---|---|---|
| Condition: | New | Dimension(L*W*H): | Standard Size, Customized |
| Weight: | It Depends | Frame: | Cardboard, Aluminium Alloy |
| Core Components: | Motor | Construction: | Panel Filter |
| Funcition: | High Temperature Resistance | Application: | Pharmaceutical Factory , Electronic Factory Food Factory |
| Package: | Customsize | Machinery Test Report: | Provided |
| Place Of Origin: | Guangdong, China | After Warranty Service: | Video Technical Support, Online Support |
| High Light: | Low Resistance Air Conditioning Hepa Filters,0.97m2 Air Conditioning Hepa Filters,Low Resistance hepa filter for ac unit |
||
Product Description
Low Resistance And High Efficiency Air Conditioning Hepa Filters
Features:
◎ Media made from ultrafine fiberglass fiber;
◎ Each filter tested by laser scans one by one;
◎ Temperature resistance up to 80 ℃;
◎ Low resistance and high efficiency, easy to install, long life for using.
OEM
Customized size is available
advantages
1. The imported equipment is made with even wrinkles and clearances.
2. PP imported melt blown + PET wet process technology, more robust.
PET is divided into wet process, dry process and glass fiber. Dry method: stiffness can not reach.
Fiberglass: Long-term use, there will be broken fibers ejected, causing cancer.
3. Basf (Germany) sponge tape is used around the filter screen, which is uniform and not deformed (if the filter is deformed, it will leak air and affect the CADR value). 4. Ear strap, ribbon printing, high-grade beautiful, long-term use will not appear the phenomenon of drawing edge.
Application
HEPA filter: It widely used to the terminal filtration of the clean room.
ULPA filter: Work zone where require demanding clean class, like hospital operation room, laboratory, pharmaceutical room, electronics, optical fiber equipment and food processing factory etc.
Characteristics:
1: There is three kinds of media for choose: Synthetic Fiber
2: The metal screen for protect z-line pleats from damage and frame distortion
3: Graded structural frame provide biggest media area, It is 5 times than plane air filter media area.
4: The frame not only can be metal but also can be Cardboard with moisture -proofing, this is disposable type without any pollution. Comply with environmental protection requirement.
5: Filtration efficiency (Test by weighing dust): 65%-95%
Efficiency range:F5,F6,F7,F8,F9 40%-95%@2um(EN779)
Dimension and parameter:
|
Dimension (W*H*D) (mm) |
Rate air flow (m3/h) |
Media area (m2) | dust containing capacity |
Initial Resistance (pa) |
Finally resistance (pa) |
Efficiency |
| 592x592x46 | 2600 | 0.97 | ≈110 |
<25-45pa
|
100-200pa |
G4
|
| ≈130 | ||||||
| ≈160 | ||||||
| ≈200 | ||||||
| 592x490x46 | 2200 | 0.81 | ≈98 | |||
| ≈110 | ||||||
| ≈130 | ||||||
| ≈160 | ||||||
| 5925x287x46 | 1300 | 0.48 | ≈50 | |||
| ≈60 | ||||||
| ≈80 | ||||||
| ≈100 | ||||||
| 490x592x46 | 2300 | 0.86 | ≈100 | |||
| ≈110 | ||||||
| ≈140 | ||||||
| ≈170 | ||||||
| 490x490x46 | 1900 | 0.71 | ≈80 | |||
| ≈95 | ||||||
| ≈115 | ||||||
| ≈145 | ||||||
| 287x592x46 | 1400 | 0.52 | ≈60 | |||
| ≈70 | ||||||
| ≈80 | ||||||
| ≈100 |
Customer size is available.
Material and operation conditions:
| Media | Synthetic fiber Media |
| Plastic frame | 21mm |
| Aluminum Frame | 17-50mm |
| Frame | Plastic /Galvanized/Aluminum/SUS frame |
| Ultrasonic wave bag | |
| Efficiency | 45-95% F5-F8 |
| Max temperature | 120°c |
| Max humidity | 100% |
