ABS Frame MERV 13 Hepa Media Filter , Pocket Bag Filter For HVAC System
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LESITE |
| Certification: | CE |
| Model Number: | FLOMAX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Consulting customer service |
| Delivery Time: | Consulting customer service |
| Payment Terms: | T/T |
| Supply Ability: | Consulting customer service |
|
Detail Information |
|||
| Frame: | Galvanized | Filter Frame: | ABS Frame |
|---|---|---|---|
| Color: | BLACK | Application: | Gas Turbine Air Compressor |
| Efficiency: | MERV 13 / 14, E10-H13 | ||
| High Light: | ABS Frame hepa media filter,MERV 13 hepa media filter,MERV 13 pocket bag filter |
||
Product Description

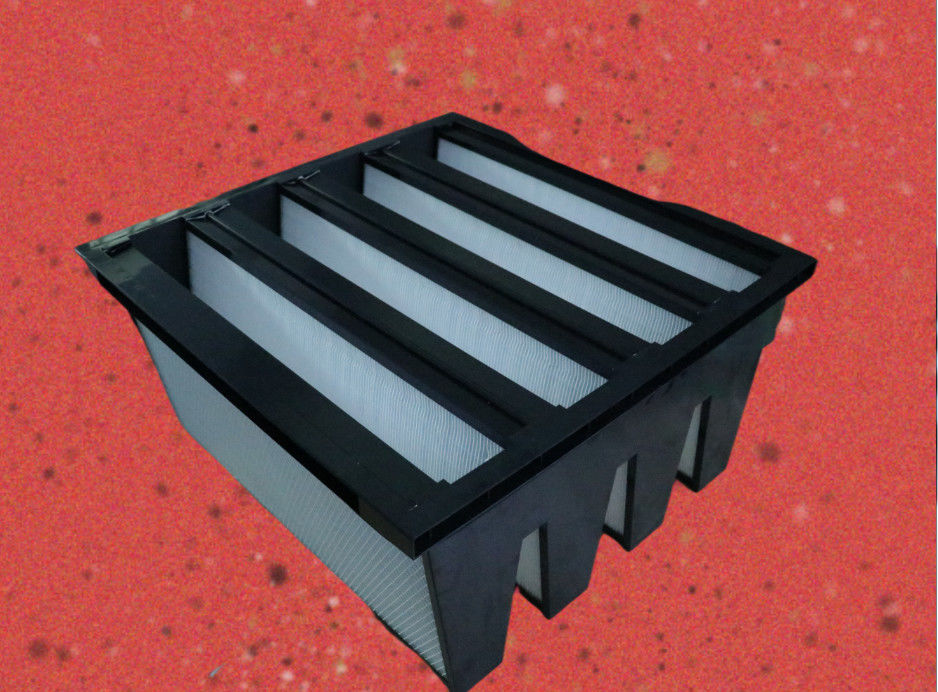

Black/ABS V Bank Filter Pleated HEPA Air Filters HVAC System With Plastic Frame
Applications:
The FloMax HVAC Air Filters are used in high efficiency final filtration in air conditioning systems, where very high airflow required.
Specifications:
| Size(WxHxD)mm | Filter Efficiency | Media area m3 | Airflow/pressure drop m3/h/Pa |
| 305x610x292 | E10 | 14 | 2000/160 |
| 595x595x292 | E10 | 21 | 4000/160 |
| 610x610x292 | E10 | 35 | 5000/160 |
| 305x610x292 | E12 | 16 | 1500/110 |
| 595x595x292 | E12 | 33 | 3400/110 |
| 610x610x292 | E12 | 40 | 4000/110 |
| 289x595x292 | H13 | 16 | 1300/110 |
| 595x595x292 | H13 | 38 | 3200/110 |
| 610x610x292 | H13 | 40 | 4000/110 |
Other sizes is available!
Description:
- Media: Polypropylene or glass fibre paper
- Separator:Hot-melt beads
- Frame: GI;Plastic
- Efficiency range from F9 ,H10,H11,H13(EN 1822)
- Initial resistance: 110 Pa
- Recommended final pressure drop : 600Pa
- Humidity resistance: 100%
- Max Temperature: 80 ℃
- Sealant: Polyurethane rubber PU
- DIN 53438 Flammability: F1
- UL 900 Standard : Class 2
- Max.air flow rate: 125% of rated air flow
- Gasket: one piece half round continuous gasket
- Available in Box or Single flange type.
Competitive Advantage:
- Ensure a long operation reliability and high dust holding capacity
- High air flow rates, up to 5000 m3/hr
- Low initial resistance.
- Tested in accordance with EN 1822
- Low energy consumpation
