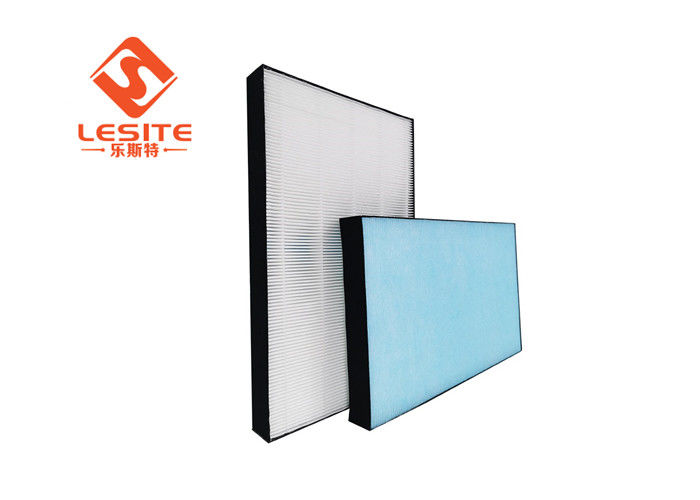

Exchangeable PP Air Purifier Filters , Hepa Air Filter With Pocket Filter
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LESITE |
| Certification: | CE |
| Model Number: | Standard type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Consulting customer service |
| Packaging Details: | Consulting customer service |
| Delivery Time: | Consulting customer service |
| Payment Terms: | T/T |
| Supply Ability: | Consulting customer service |
|
Detail Information |
|||
| Keyword: | Air Purifier Filters | Frame: | Aluminium-foil Paper |
|---|---|---|---|
| Material: | PP & PF | Application: | Laboratory/clean Room/air Conditioner |
| Efficiency: | 99.97%, 99.97% 0.3um | Filtration Grade: | Hepa Filter |
| High Light: | Exchangeable Air Purifier Filters,PP Air Purifier Filters,Exchangeable hepa air filter |
||
Product Description
Filter With High Efficiency Air Purifier Filters Can Be Exchanged With Pocket Filter
We can provide a wide selection of sizes in cleanroom air filters in either aluminum, stainless steel, galvanized sheet frames. Gaskets are supplied either for upstream or downstream clamping.
They are main filters for clean room use, commercial and industrial ventilation and air conditioning systems. Custom cleanroom filter and prefilter sizes can be created to meet unique cleanroom application requirements.
|
Product name
|
Air Purifier Filters |
|
External Frame
|
Aluminum alloy, galvanized, stainless steel, plastic
|
|
Filter Material
|
Ultra-thin glass fiber filter paper, artificial fiber filter paper
|
|
Separator
|
Hot fusion glue
|
|
Sealant
|
Foamed EVA, AB two component glue
|
|
Filtration Grade
|
F6, F7, F8, F9
H10, H11, H12, H13, H14 (EN779)
|
|
Efficiency
|
65%, 75%, 85%, 95%
99%, 99.9%, 99.99%, 99.999%, 99.9999% (ASHRAE52.1-1992)
|
|
Porosity
|
≥0.5μm, ≥0.3μm
|
|
Temperature Resistance
|
≤80°C
|
|
Humidity
|
≤100%RH
|
Air filter uesd in:
1. Air condition system
2. Ventilate system
3. Exhaust gas filter in paint exhaust system on the floor of dry spray booth
4. Avoid tar coom and dust from high-temperature dryer
5. Clean room, cleaning equipments
6. FFU
7. Pharmaceutical factory,hospital, electronic factory food factory
8. Car production line development
9. Ultra-clean high-temperature oven
10. Car spray paint baking temperature applications.
11. Chemical, food factory etc industris
|
Nominal size
|
Actual size
|
Partition
|
Flange
|
Rated air volume
|
|
(inch)
|
(mm)
|
(V)
|
(non/single)
|
(m3/h)
|
|
W×H×D
|
W×H×D
|
|
|
|
|
12×24×12
|
287×592×292
|
2V
|
Single flange
|
1200
|
|
24×12×12
|
592×287×292
|
4V
|
Single flange
|
1200
|
|
24×20×12
|
592×492×292
|
4V
|
Single flange
|
2200
|
|
24×24×12
|
592×592×292
|
4V
|
Single flange
|
2700
|
|
12×24×12
|
305×610×292
|
2V
|
Non-flange
|
1400
|
|
24×24×12
|
610×610×292
|
4V
|
Non-flange
|
3000
|
Features:
The filtration efficiency is up to 97%-99.99% for motes of 0.1-0.3pm( The particle caused by smoking is 0.5 diameter). It can realize air purification by removing the dust,pollen,smoke,coal , bacteria,radioactive material and impurity iron.
Selecting the filter media and filter domention and shape according to filtration efficiency,ventilation volume and resistance to fit the air purifier.
Specifications:
1.It is applied the technology of totally-sealed. The sealing effect is better and more durable than normal one ,which is not easy to leak
2.The double sides of filter material are protected by metal wire mesh.
3.Theare are 50 mm, 69 mm, 90 mm and other various thickness available.
Material List
| Frame Material | Aluminum/Galvanized Steel/Wood |
| Filtering Material | Microfiber paper |
| Sealant | Polyurethane |
| Inner liner strip | EVA/EPDM |
| Separator | Offset paper/Aluminum foil |
| Maximum Humidity | ≤100%HR |
| Maximum temperature |
≤80℃
|
| Application | Electronic/precision machinery/pharmacy/food/semiconductor |
