Melt Blown Synthetic 595mm Air Purifier Filters , F7 Bag Filter Yellow
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LESITE |
| Certification: | CE |
| Model Number: | MANIPAK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Consulting customer service |
| Delivery Time: | Consulting customer service |
| Payment Terms: | T/T |
| Supply Ability: | Consulting customer service |
|
Detail Information |
|||
| Product Name: | Bag Air Filter | Frame: | Aluminum Or Galvanized Steel |
|---|---|---|---|
| Media: | Synthetic | Efficiency: | 45% - 95% |
| Sealing: | Ultrasonic Welded Pockets | ||
| High Light: | 595mm Air Purifier Filters,F7 Air Purifier Filters,F7 Bag Filter |
||
Product Description

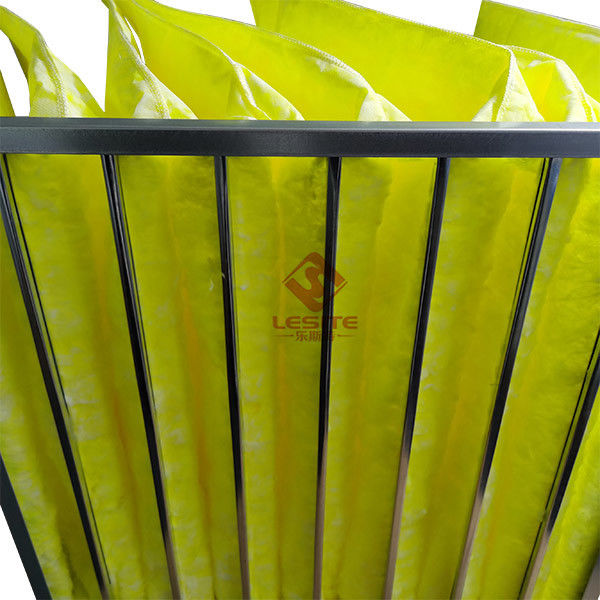

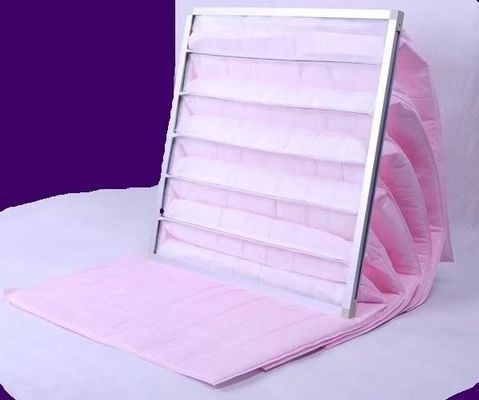

Melt Blown Synthetic F7 Bag Filter Good Performance With Low Energy Cost
Applications:
The bag filter are used as the fine filtration in air handling systems and units of any kind as in commercial buildings, hospitals, and computer and telephone centers, optical, fine mechanical,electronic and pharmaceutical, manufacturing plants.
Specifications:
| Size(HxWxD)mm | No.of Pockets | Rated Airflow(CFM) | Initial Resistance(Pa) |
| 595x595x600 | 8 | 2000 | 85 |
| 595x595x600 | 6 | 1650 | 85 |
| 595x595x381 | 8 | 1500 | 85 |
| 595x595x381 | 6 | 1250 | 85 |
| 595x495x600 | 6 | 1650 | 85 |
| 595x495x600 | 4 | 1000 | 85 |
| 595x295x600 | 4 | 1000 | 85 |
| 595x295x600 | 3 | 750 | 85 |
| 595x295x381 | 4 | 750 | 85 |
Other sizes is available!
Description:
- Media: Dual layer progressively structured synthetic fibre
- Frame: GI; AI
- Efficiency range from F5,F6,F7,F8,F9 (EN 779)
- Average Efficiency: 45%;65%;85%;95%;
- Initial resistance: 45 Pa
- Recommended final pressure drop : 400Pa
- Humidity resistance: 100%
- Max Temperature: 90 ℃
- DIN 53438 Flammability: F1
- UL 900 Standard : Class 2
- Max.air flow rate: 125% of rated air flow
- Media color available: White;Green;Pink;Yellow;Purple.
- Filter standard depth available 15 inch (381mm); 24 inch(600mm)
- No stitch holes emission.
- Gasket: EVA
Competitive Advantage:
- Ensure a long operation reliability and high dust holding capacity
- Low initial pressure drop,high efficiency.
- To catch the fine dust and microorganism efficiently.
- Offer different pocket number design to meet different airflow requirements.
- Special Characteristics of Each Fine Filter Class
- F5 to F9 fine filters wholly can be used as the pre-filters for HEPA filter.
- F5,F6 is mainly for the ventilation system for comfortable air supply for office or building.
- F7 is to prevent the specks engender in the air supply ceiling of hotels.
- F8 can be used as the final filters for 300,000 class clean room.
- F9 can bring the clean air of 100,000 class for clean room
