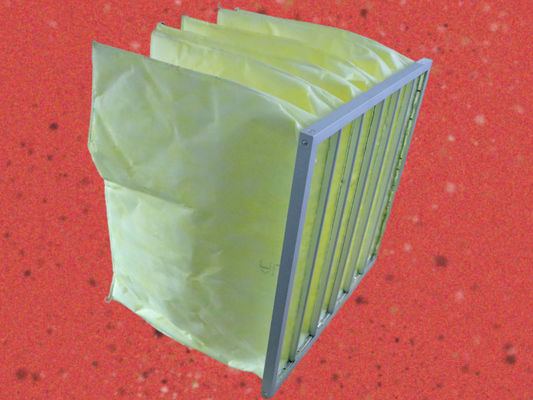

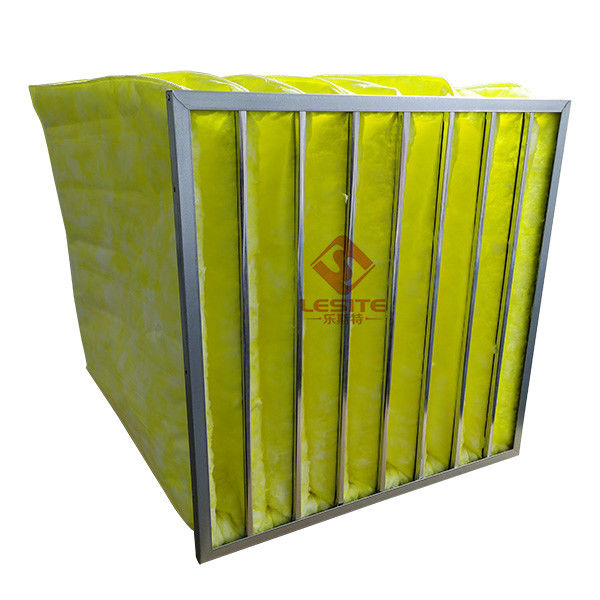

Galvanized Steel Synthetic Media G4 8 Pockets Hepa Filtration Systems Green
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LESITE |
| Certification: | CE |
| Model Number: | MANIPAK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Consulting customer service |
| Delivery Time: | Consulting customer service |
| Payment Terms: | T/T |
| Supply Ability: | Consulting customer service |
|
Detail Information |
|||
| Product Name: | Pocket Filter | Frame: | Aluminum Or Galvanized Steel |
|---|---|---|---|
| Media: | 100% Synthetic | EN779: | G3 G4 M5 M6 F6 F7 F8 F9 |
| Fire Classifications: | F1 Or UL-2 | ||
| High Light: | 8 Pockets Hepa Filtration Systems,G4 hepa filtration systems,8 Pockets hepa filters for home |
||
Product Description
Galvanized steel For All Hvac System/G4 Synthetic Fine Bag Air Filters Aluminum
Applications:
Fine air filtration unit for general ventilation and air conditioning equipment installed in offices, shopping centers, schools, theaters, hotels, industiral plants. Food processing facilities, laboratories etc. Also as pre-filter in the supply air units for car paint spray cabins, as well as pre-filter for electrical equipment electric motors and super-fine and absolute HEPA filtration systems.
Description:
The bag filters are 100% synthetic, corrosion-free and humidity-resistant product. It conforms to all European Union and U.S.fire classfications ( e.g.DIN 53438-F1 and UL-2). The pocket medium is inherently rigid, with a welded rib construction to form a pocket with the highest possible functional security in even the most brutal air-pressure and high dust-laden environments. The leak-free construction, the incorporated aerodynamic spacers and the embedded medium in a formstable rein-forced metal fromt-header guarantee highest performance in most environments.
Constant quality is assured by independent quality control according to EN-779.
Specifications:
| Size(HxWxD)mm | No.of Pockets | Rated Airflow(CFM) | Initial Resistance(Pa) |
| 595x595x600 | 8 | 2000 | 85 |
| 595x595x600 | 6 | 1650 | 85 |
| 595x595x381 | 8 | 1500 | 85 |
| 595x595x381 | 6 | 1250 | 85 |
| 595x495x600 | 6 | 1650 | 85 |
| 595x495x600 | 4 | 1000 | 85 |
| 595x295x600 | 4 | 1000 | 85 |
| 595x295x600 | 3 | 750 | 85 |
| 595x295x381 | 4 | 750 |
85 |
Other sizes is available!
Description:
- Media: Dual layer progressively structured synthetic fibre
- Frame: GI; AI
- Efficiency range from G4 (EN 779)
- Average Efficiency: 35%;
- Initial resistance: 45 Pa
- Recommended final pressure drop : 400Pa
- Humidity resistance: 100%
- Max Temperature: 90 ℃
- DIN 53438 Flammability: F1
- UL 900 Standard : Class 2
- Max.air flow rate: 125% of rated air flow
- Media color available: White;Green;Pink;Yellow;Purple.
- Filter standard depth available 15 inch (381mm); 24 inch(600mm)
- No stitch holes emission.
- Gasket: EVA
Competitive Advantage:
- Ensure a long operation reliability and high dust holding capacity
- Low initial pressure drop,high efficiency.
- To catch the coarse fine dust and microorganism efficiently.
- Offer different pocket number design to meet different airflow requirements.
- Special Characteristics of Each Fine Filter Class
