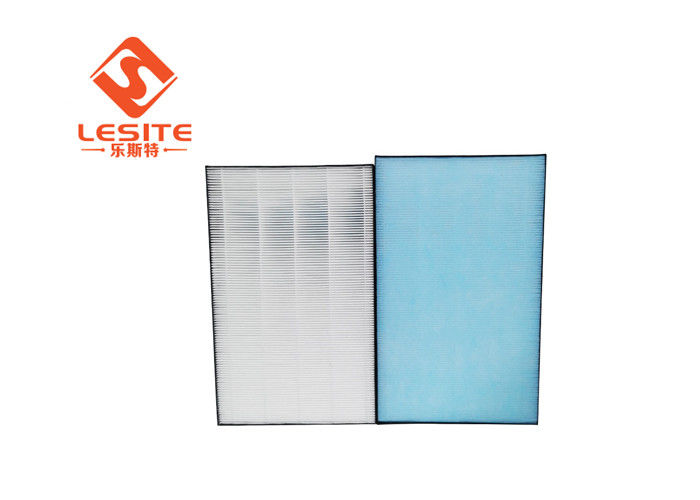

Large Dust Containing Capacity 99.99% PF Industrial Hepa Filter
Product Details
| Keyword: | Air Purifier Filters | Frame: | Aluminium-foil Paper |
|---|---|---|---|
| Material: | PP & PF | Application: | Laboratory/clean Room/air Conditioner |
| Efficiency: | 99.97%, 99.97% 0.3um | Filtration Grade: | Hepa Filter |
| Highlight |
PF industrial hepa filter,99.99% industrial hepa filter,99.99% high efficiency particulate air filter |
||
Product Description
Large Dust Containing Capacity Air Purifier Filters The Filtration Efficiency Is Up To 97%-99.99%
Air filter uesd in:
1. Air condition system
2. Ventilate system
3. Exhaust gas filter in paint exhaust system on the floor of dry spray booth
4. Avoid tar coom and dust from high-temperature dryer
5. Clean room, cleaning equipments
6. FFU
7. Pharmaceutical factory,hospital, electronic factory food factory
8. production line development
9. Ultra-clean high-temperature oven
10. Car spray paint baking temperature applications.
11. Chemical, food factory etc industris
|
Nominal size
|
Actual size
|
Partition
|
Flange
|
Rated air volume
|
|
(inch)
|
(mm)
|
(V)
|
(non/single)
|
(m3/h)
|
|
W×H×D
|
W×H×D
|
|
|
|
|
12×24×12
|
287×592×292
|
2V
|
Single flange
|
1200
|
|
24×12×12
|
592×287×292
|
4V
|
Single flange
|
1200
|
|
24×20×12
|
592×492×292
|
4V
|
Single flange
|
2200
|
|
24×24×12
|
592×592×292
|
4V
|
Single flange
|
2700
|
|
12×24×12
|
305×610×292
|
2V
|
Non-flange
|
1400
|
|
24×24×12
|
610×610×292
|
4V
|
Non-flange
|
3000
|
Features:
The filtration efficiency is up to 97%-99.99% for motes of 0.1-0.3pm( The particle caused by smoking is 0.5 diameter). It can realize air purification by removing the dust,pollen,smoke,coal , bacteria,radioactive material and impurity iron.
Selecting the filter media and filter domention and shape according to filtration efficiency,ventilation volume and resistance to fit the air purifier.
Specifications:
1.It is applied the technology of totally-sealed. The sealing effect is better and more durable than normal one ,which is not easy to leak
2.The double sides of filter material are protected by metal wire mesh.
3.Theare are 50 mm, 69 mm, 90 mm and other various thickness available.
Characteristic
1. Big air volume and small resistance
2. Large dust containing capacity
3. Filter with high efficiency
4. The filter suitable for pollute environment around PM2.5
Material List
| Frame Material | Aluminum/Galvanized Steel/Wood |
| Filtering Material | Microfiber paper |
| Sealant | Polyurethane |
| Inner liner strip | EVA/EPDM |
| Separator | Offset paper/Aluminum foil |
| Maximum Humidity | ≤100%HR |
| Maximum temperature |
≤80℃
|
| Application | Electronic/precision machinery/pharmacy/food/semiconductor |
